SPECIFICATIONS

Housing: Ductile iron conforming to ASTM A536, Grade 65-45-12

Housing Coating: (Specify Choice)

  • Standard: Orange enamel for ANSI sizes. Black enamel for ISO sizes and 5″ IPS.
  • Optional: Fusion bonded epoxy, galvanized and other coatings are available. Contact Victaulic for detai

Retaining Ring: Type 316 stainless steel.

Coupling Gasket: (Specify Choice)

  • Grade “T”Nitrile (Standard or Flush-Seal™) Nitrile (Orange stripe color code). Temperature range -20ºF to +180ºF/-29ºC to +82ºC. May be specified for petroleum products, hydrocarbons, air with oil vapors, vegetable and mineral oils within the specified temperature range; not compatible for hot dry air over 140°F/ 60°C and water over +150ºF/+66ºC. NOT COMPATIBLE FOR USE WITH HOT WATER SERVICES OR STEAM SERVICES
  • Grade “E” EPDM (Standard or Flush-Seal™) EPDM (Green stripe color code). Temperature range –30ºF to +230ºF/–34ºC to +110ºC. May be specified for cold and hot water service within the specified temperature range plus a variety of dilute acids, oil-free air and many chemical services. UL Classified in accordance with ANSI/ NSF 61 for cold +73ºF/+23ºC and hot +180ºF/+82ºC potable water service and ANSI/NSF 372. NOT COMPATIBLE FOR PETROLEUM SERVICES OR STEAM SERVICES.
  • Grade “EF” EPDM EPDM (Green “X” color code). Temperature range –30ºF to +230ºF/–34ºC to +110ºC. May be specified for hot and cold water service within the specified temperature range plus a variety of dilute acids, oil-free air and many chemical services. Also meets hot and cold potable water requirements per DVGW, KTW, ÖVGW, SVGW, and French ACS (Crecep), approved for W534, approved for EN681-1 Type WA cold potable, and Type WB hot potable water service. NOT COMPATIBLE FOR USE WITH PETROLEUM SERVICES OR STEAM SERVICES.
  • Grade “O” Fluoroelastomer Fluoroelastomer (Blue stripe color code). Temperature range +20ºF to +300ºF/-7ºC to +149ºC. May be specified for many oxidizing acids, petroleum oils, halogenated hydrocarbons, lubricants, hydraulic fluids, organic liquids and air with hydrocarbons. NOT COMPATIBLE FOR USE WITH HOT WATER SERVICES OR STEAM SERVICES.

Available Sizes

  • 2 – 14″ IPS high-density polyethylene (HDPE) and IPS high-density polyethylene of raised temperature (PE-RT)
  • 63 – 355 mm ISO high-density polyethylene (HDPE)

Pipe Material

  • HDPE pipe conforming to ASTM D3035 and ASTM F714 or ISO 4427-2 (SDR 7 – 21)
  • PE-RT pipe conforming to ASTM D3350, cell class PE445574C, ASTM F2619, and ASTM F714 (SDR 7 – 21)• Contact Victaulic for other pipe materials

Maximum Working Pressure

  • Meets or exceeds the pressure rating of the HDPE or PE-RT pipe

Operating Temperature

  • Dependent upon pipe manufacturer rating and gasket selection
  • Consult pipe manufacturer for pipe material performance limitations

Function

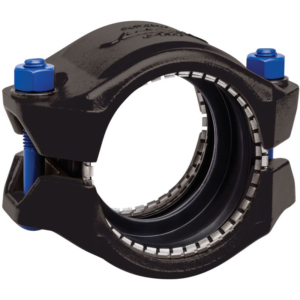

  • Joins plain end HDPE pipe
  • Utilizes patented Installation-Ready™ technology to eliminate loose parts

Pipe Preparation

  • For use on plain end HDPE or PE-RT pipe
